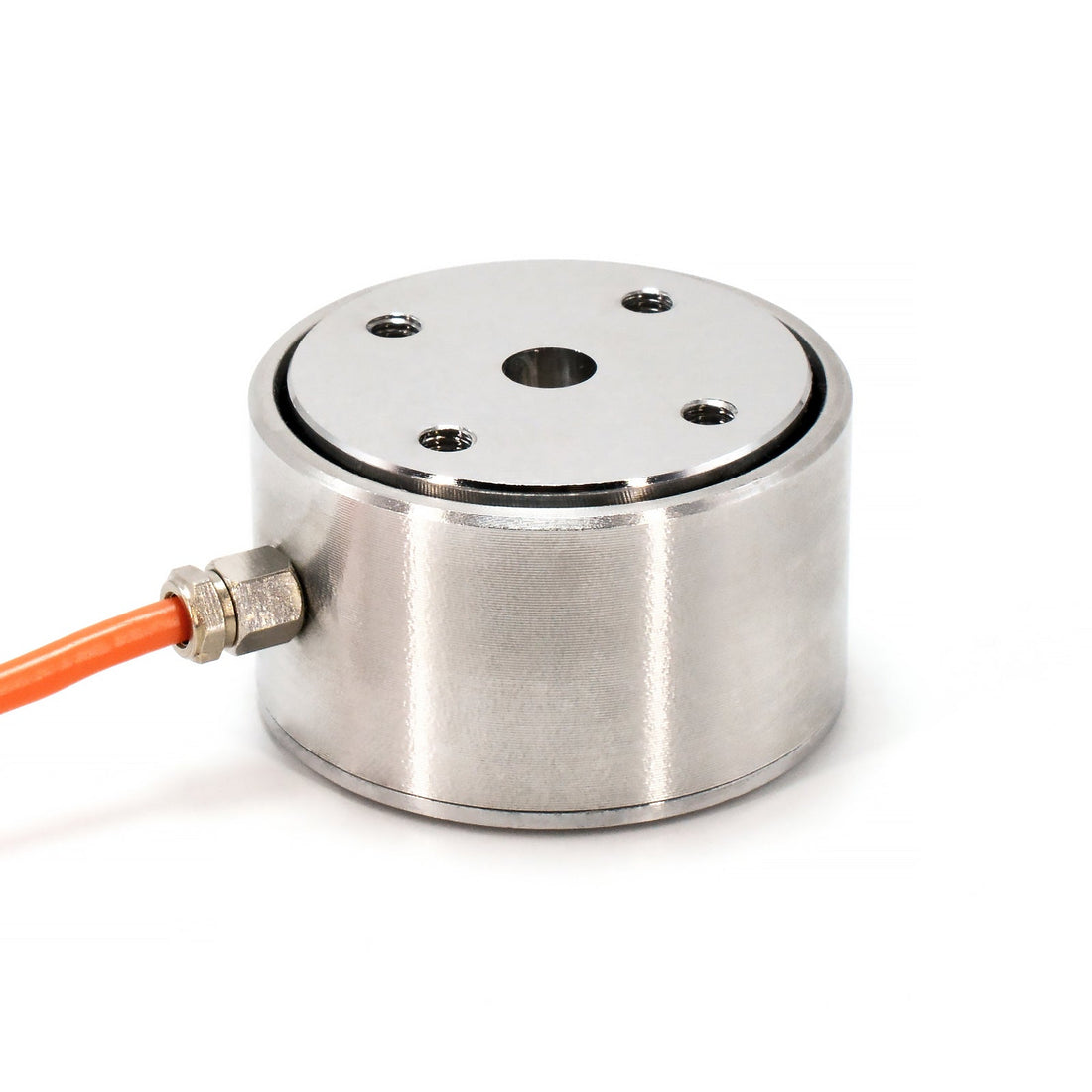

HGMH-41 Planar Column Load Cell
The HGMH-41 is a low-profile, large-contact-area planar column load cell, designed for force measurement applications where installation space is limited but high accuracy is required. Its stainless steel construction ensures excellent long-term stability and resistance to harsh environments. Standard ranges up to 2000kg, with customization available for range and dimensions.
Features & Benefits
- Low profile + large contact area – easy integration into compact systems
- High accuracy – 0.05% nonlinearity, 0.03% repeatability
- Robust stainless steel body – IP66/IP65 protection
- Wide temperature range – -20℃ to +80℃
- Customizable – range, size, and output options available
Typical Applications
- Press-fitting and assembly equipment
- Smartphone assembly force monitoring
- Small pressure platforms
- Material testing machines
- Hydraulic and cold/hot press machines
- Electronic hopper scales and bin scales
- Tension & compression testing devices
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Load | 0 ~ 2000 kg (customizable) |
| Sensitivity | 2.0 ± 0.05 mV/V |
| Nonlinearity | ±0.05% F·S |
| Hysteresis | ±0.03% F·S |
| Repeatability | ±0.03% F·S |
| Creep | ±0.03% F·S |
| Zero Temp. Coefficient | ±0.05% F·S / 10℃ |
| Sensitivity Temp. Coefficient | ±0.03% F·S / 10℃ |
| Input Impedance | 350 Ω |
| Output Impedance | 350 Ω |
| Insulation Resistance | ≥5000 MΩ / 100VDC |
| Excitation Voltage | 5 ~ 10 VDC |
| Compensated Temp. Range | -20℃ ~ +80℃ |
| Safe Overload | 150% F·S |
| Ultimate Overload | 200% F·S |
| Protection Class | IP66 / IP65 |
| Material | Stainless steel |
| Cable | Φ3 × 2 m |
Wiring Diagram
- EXC+ : Red
- SIG+ : Green
- SIG- : White
- EXC- : Black
- Shield : Drain
Customization & Ordering
Custom ranges, dimensions, and amplified outputs (0-10V / 4-20mA / RS485) are available. Contact us for a datasheet or sample testing.
