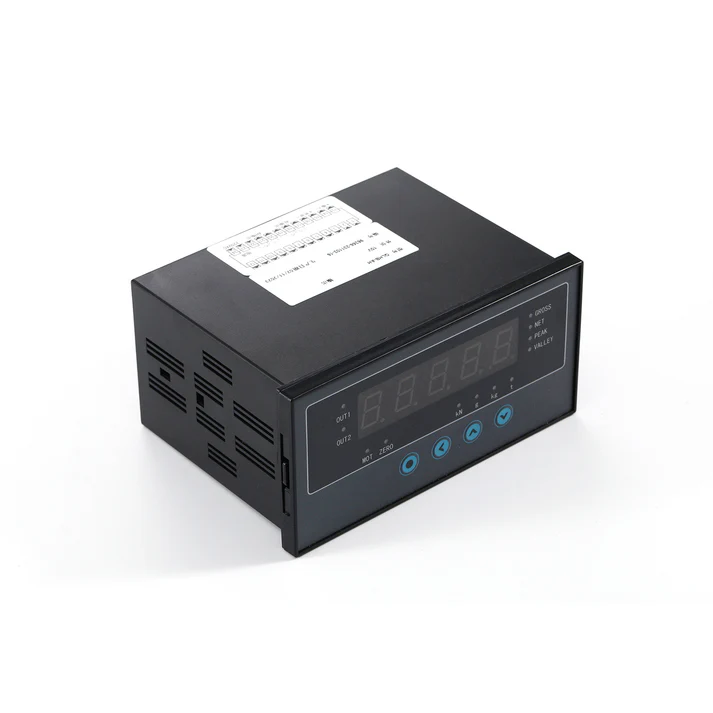

B1A1 - Load Cell Sensor Display With Dual Relay Sets

B1A1 is an intelligent industrial sensor integrating high-precision weighing, peak value recording, and relay control. It delivers stable and reliable weight measurement while enabling automated control and safety alerts through smart functions.

Core Features:

Multi-Unit Switching: Supports one-touch switching between kg (kilograms), t (tons), g (grams), and kN (kilonewtons), simultaneously meeting mass and force measurement requirements.

Peak Recording: Automatically captures and locks the maximum value during weighing for easy data traceability and analysis.

Dual-Point Alarms: Configures two independent weight alarm points for upper/lower limit monitoring.

Relay Control: Features two built-in relays to directly control external devices (e.g., alarms, solenoid valves) based on alarm signals, enabling automatic sorting or emergency stops.

Typical Applications:

- Automated checkweighing and sorting on production lines
- Material control in hoppers and storage tanks
- Overload protection systems
- Material mechanical testing and force monitoring
